Haglöf Vertex Laser Geo Hypsometer Packages

Item #: 9727
Earn 0 reward points with this purchase.

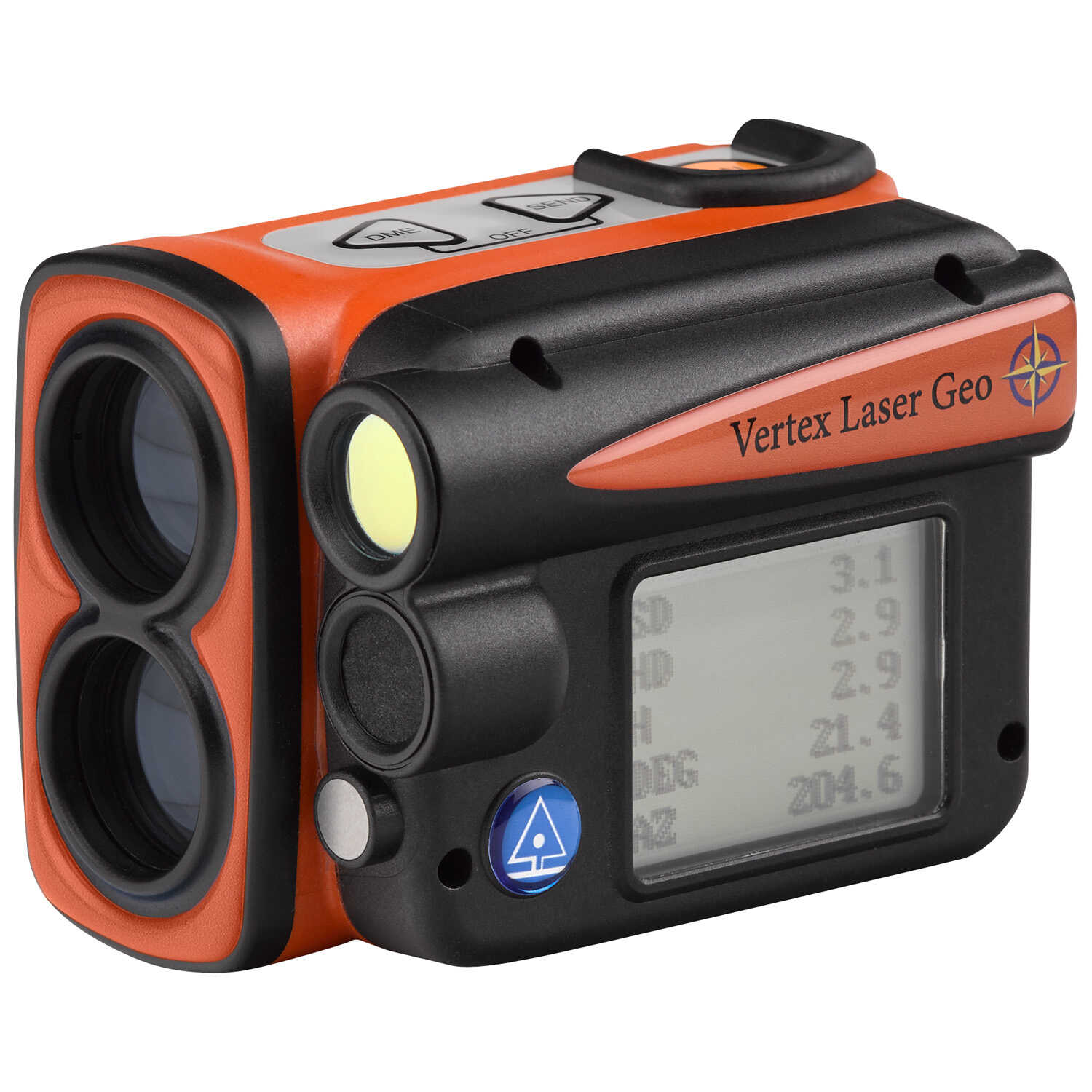

Haglöf Vertex Laser Geo 60° Package

The Vertex Laser Geo combines a laser, ultrasound, and tilt sensor to provide accurate and reliable distance, height, and angle measurements. An integrated compass sensor also allows for 3D measurements. In addition, the built-in GPS receiver and a 5-position numeric ID-attribute let you tag important data with coordinates using a simple key press. Data is stored on an SSD drive and is available for further processing upon connection via USB interface to your PC. Use the laser or ultrasound alone as a rangefinder or in combination with the tilt sensor to measure heights and angles. To achieve more accurate distance results at shorter distances, even through thick vegetation, use the ultrasonic feature along with the transponder. Ultrasonic measurement provides results in meters or feet and allows measurements to be obtained even when a clear line of sight to the target is not available. The laser function lets you work without a transponder and obtain measurements at longer distances. When using the laser, the transponder can be utilized as a visible reference point. The Vertex Laser Geo is Bluetooth®-capable and also features a reverse prism function (BAF feature) which has built-in prism factors of 5, 10, 15, 20, 25, 30, 35, 40, 45, and 50 (English) and 0.5, 1.0, 2.0, 3.0, 4.0, 5.0, 6.0, 7.0, 8.0, and 9.0 (Metric).

Product Notes

  • Combination English/Metric Scales or Units.

Have A Question?

Quick Specs

Brand Haglof
MPN 15-103-1102
UNSPSC 41111603
Laser: Distance, maximum 700m/2,000 ft. (depending on target); Resolution, 0.1m/0.1 ft.; Accuracy, 4 cm/0.1 ft. Ultrasound: Distance, 60° transponder – 30m/98 ft., 360° adapter – 20m/60 ft.; Resolution, 0.01m/0.1 ft.; Accuracy, 1% or better when calibrated. Height: Range, 0 to 999 m/ft.; Resolution, 0.1 m (0.1 ft.). Angle: Range, -90° to 90°; Resolution, 0.1°; Accuracy, ±0.1°. Compass: Azimuth compass 0 to 360°; Resolution, 0.1°; Accuracy, <1.5 RSME°. GPS: 33-channel high-sensitivity receiver. Memory: 2,000 datasets, non-volatile. Operating Range: -4°F to 113°F (-20°C to 45°C). Power: Rechargeable Lithium-ion battery, 3.7V. Weight: 8.6 oz. Dimensions: 3.7˝ x 2.5˝ x 2.8˝.

Quick Specs

Brand: Haglof
MPN: 15-103-1102
UNSPSC: 41111603
