Mini-Sieve™ Micro Sieve Set

Item #: 53618
$205.00
Earn 205 reward points with this purchase.

Description

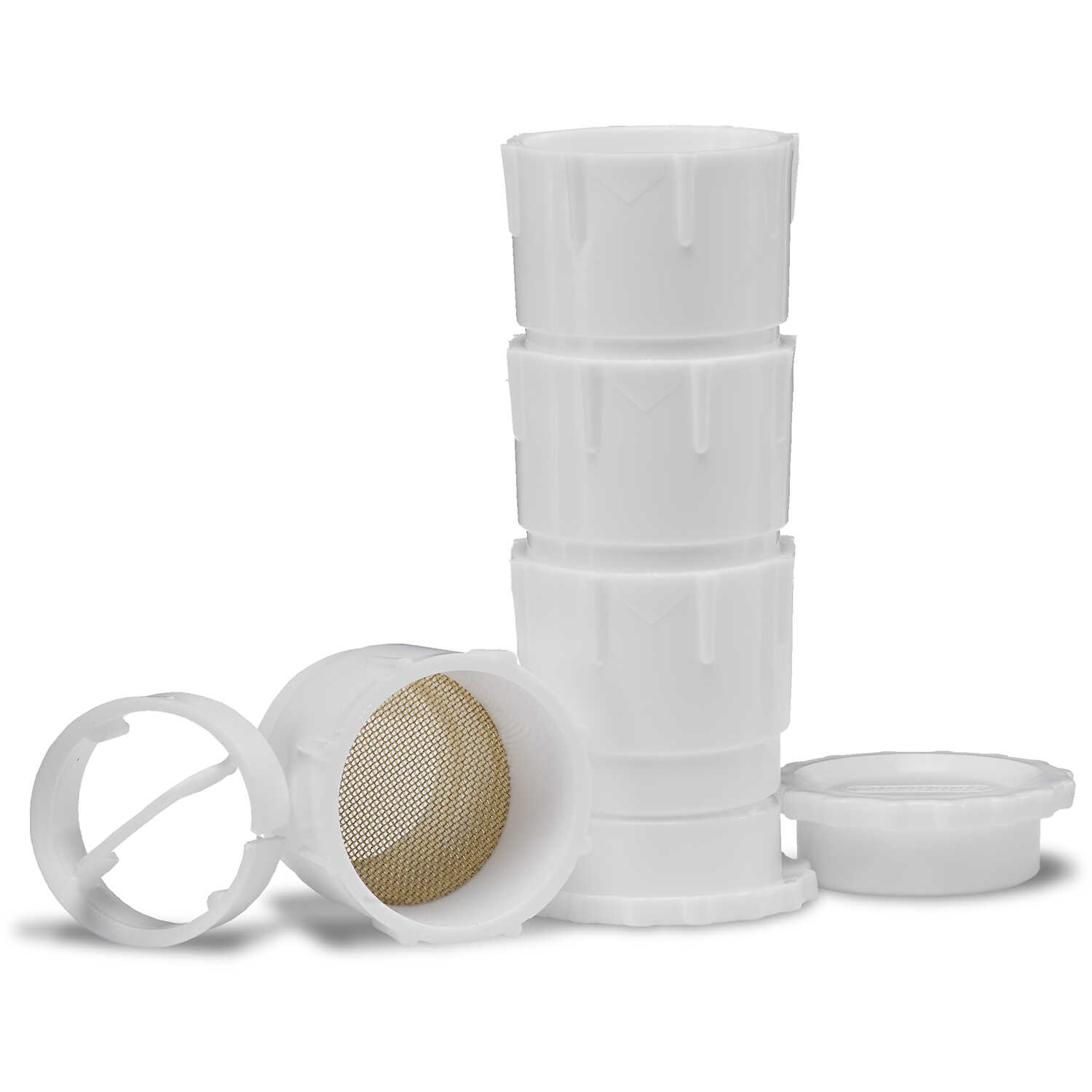

Mini-Sieve Micro Sieve Set

This micro sieve set’s mesh inserts can be changed or cleaned thoroughly by unscrewing the screen-holding sections. When finished, screw them together snugly to lock the mesh in place. The set consists of four interchangeable screen-holding sections, a catch pan, and a friction-fit cover – all molded of polypropylene. Eight phosphor-bronze mesh inserts are also included, one each of the following sizes: 25, 35, 45, 60, 80, 120, 170, and 230 mesh.

Have A Question?

Quick Specs

UNSPSC 41113900
Made In United States
Other
Dimensions: Set, 2.55˝ maximum O.D. x 6˝H; Holding Section, 2˝I.D. x 1-1/8˝H. Capacity: each holding section holds about 60 cc.

Have a question about this product?

Test question?
Test answer
Is it possible to buy additional "screen holding sections" only?
They do not offer additional screen holding sections, but you can buy a replacement set of the mesh inserts.
What are the sieve sizes in microns? Also, what is the diameter of the sieves?
The outside diameter of the set is 2.6". Below is the micron size converted from the sieve number: No 25= 710 um, No 35 = 500 um, No 45 = 355 um, No 60 = 250 um, No 80 = 180 um, No 120 = 125 um, No 170 = 90 um, and No 230 = 63 um.
