WaterAx

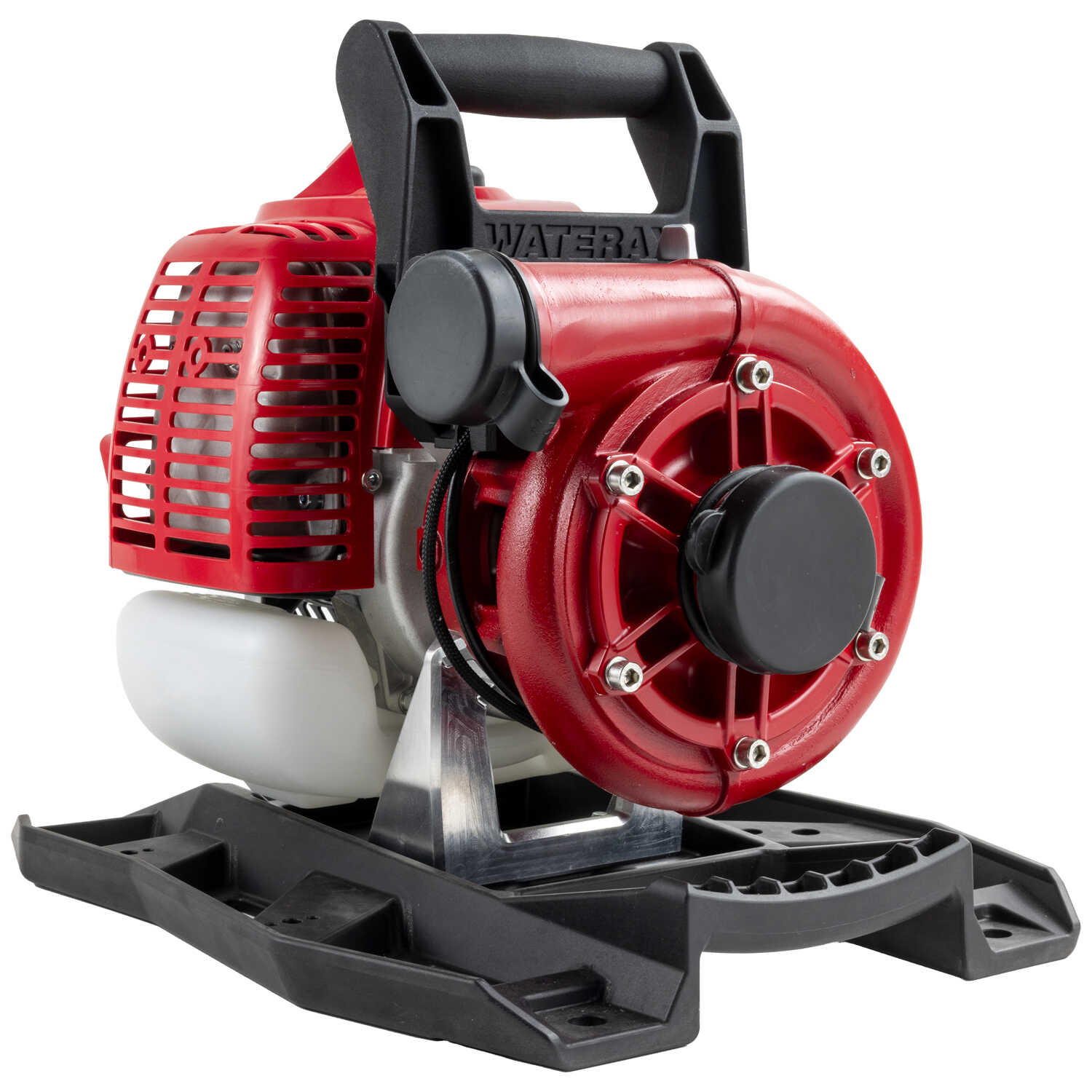

WATERAX Mini-Mark® Watson Edition Fire Pump

Item #: 93759
$1,585.00
Earn 1,585 reward points with this purchase.

Description

WATERAX Mini-Mark Watson Edition Fire Pump

This lightweight, high-pressure pump is equipped with a 2.3 HP 2-stroke engine and a single-stage pump end to deliver pressures up to 85 PSI (6 bar) and a maximum flow rate of 102 GPM (386 L/Min). Ideal for use in initial attack firefighting, structure protection, sprinkler operations, and tandem pumping over long distances, the pump’s compact size and backpackable design allow for easy transport to remote locations. An electronic overspeed cutout switch safeguards against engine and pump damage during loss of prime conditions, and the anodized aluminum pump components stand up to rugged use. Also features a composite corrosion-resistant impeller, centrifugal clutch, throttle with detents to avoid throttle drift, and an ergonomic carry handle.

Have A Question?

Quick Specs

Brand WaterAx
MPN 100147
UPC
UNSPSC 46191600
Other
Maximum Pressure: 85 PSI (6 bar). Maximum Flow: 102 GPM (386 L/min). Maximum Head: 196´ (60m). Performance: 66 GPM (250 L/min) @ 25 PSI (1.7 bar); 50 GPM (189 L/min) @ 50 PSI (3.4 bar); 31 GPM (117 L/min) @ 75 PSI (5.2 bar). Engine Type: 2.3 HP 2-stroke engine. Maximum Torque: 2.1 lb-ft @ 4,000 RPM. Fuel Tank Capacity: 0.26 gallons. Pump – Type: Single-stage centrifugal pump; Intake: 2˝ NPSH; Discharge: 1.5˝ NPSH. Weight: 18.5 lbs.
