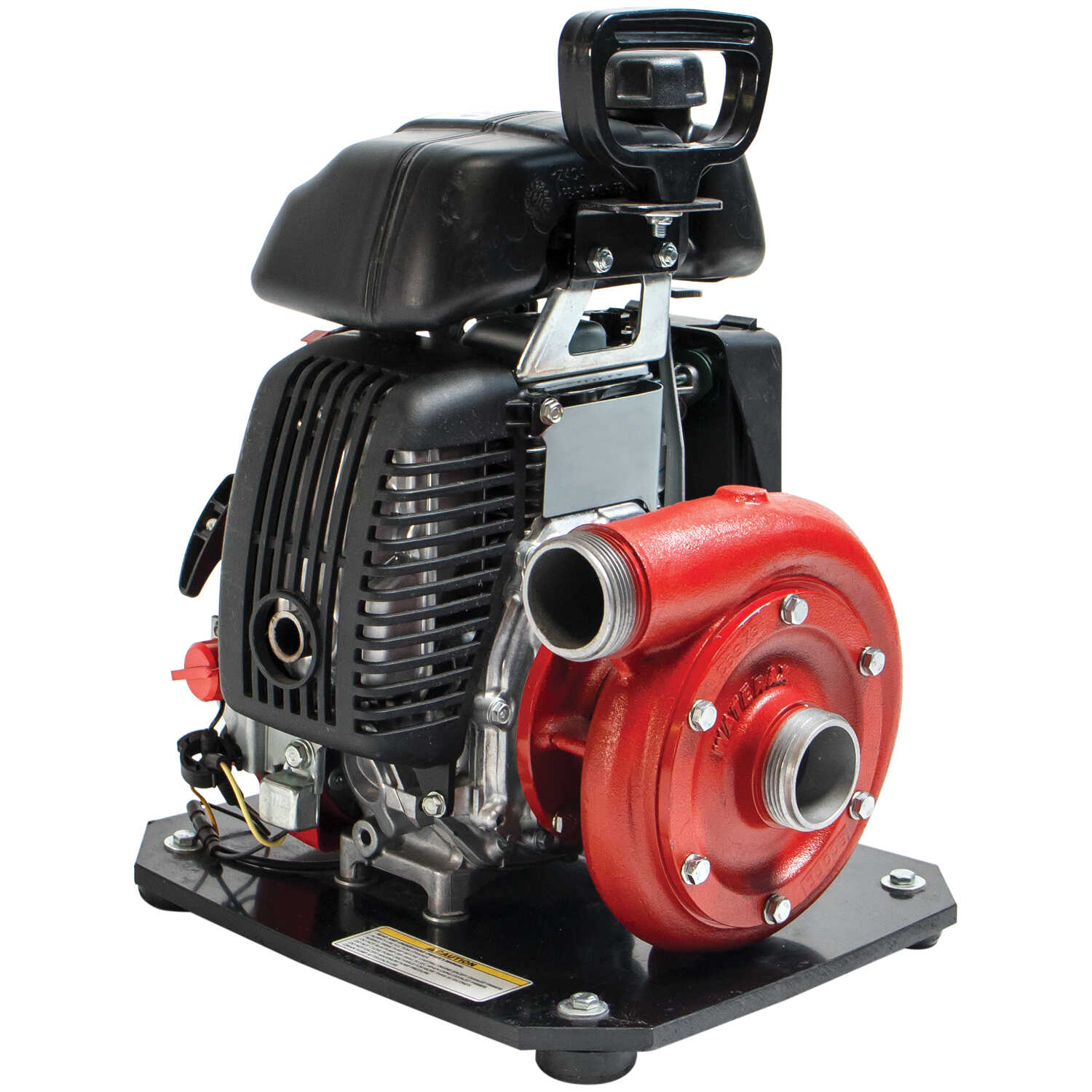

WATERAX GHX-50 Mini Striker Fire Pump
- Honda 4-stroke 2.5 HP engine
- Achieve pressures of up to 85 PSI (5.9 BAR) and volume supply of up to 80 GPM (303 L/Min)
- Emissions compliant; engine is CARB and EPA certified
Earn 1,645 reward points with this purchase.
Description
WATERAX GHX-50 Mini Striker Fire Pump
This pump pairs a reliable single stage pump end with the Honda 4-stroke 2.5 HP engine to achieve pressures of up to 85 PSI (5.9 BAR) and offer volume supply of up to 80 GPM (303 L/Min). Extremely portable and lightweight, this mini powerhouse performs well when used by itself or in tandem with other pumps, and is a very popular choice for entry level slip-on applications. It is also particularly suited to some of the latest fire control techniques where small, lightweight equipment is a requirement. The widely-available Honda 4-stroke 2.5 HP engine makes for ease of operation and engine parts sourcing. Emissions compliant; engine is CARB and EPA certified.
Have A Question?
Quick Specs
| Brand | WaterAx |
| MPN | 100053 |
| UPC | |
| UNSPSC | 46191600 |
| Other |
Flow Rate at Specified Pressure – Maximum Pressure: 85 PSI (5.9 bar)
Maximum Flow: 80 US gals/min (303 L/min)
Maximum Head: 196´ (60 m)
Performance – 68 GPM (257 lpm) @ 25 PSI (1.7 BAR)
42 GPM (159 lpm) @ 50 PSI (3.4 BAR)
12 GPM (45 lpm) @ 75 PSI (5.2 BAR)
Engine – Model & Type: Honda, GXH50 Series, 4-stroke, horizontal shaft, single cylinder, OHV
Maximum Power: 2.1 HP (1.6 kW) @ 7,000 RPM
Maximum Torque: 2.0 lb-ft (2.7 Nm) @ 4,500 RPM
Starting System: Recoil
Pump – Type: 1-Stage Centrifugal
Intake: 1-1/2˝ Male NPSH
Discharge: 1-1/2˝ Male NPSH
Weight – Weight: 20 lbs
Frame – Poly base with rubber mount
Drive Unit – Direct Drive
|
Documents
Quick Specs
Brand: WaterAx
MPN: 100053
UPC:
UNSPSC: 46191600
Options and Accessories
