TruPulse® L2 Laser Hypsometer

Item #: 92550
Earn 595 reward points with this purchase.

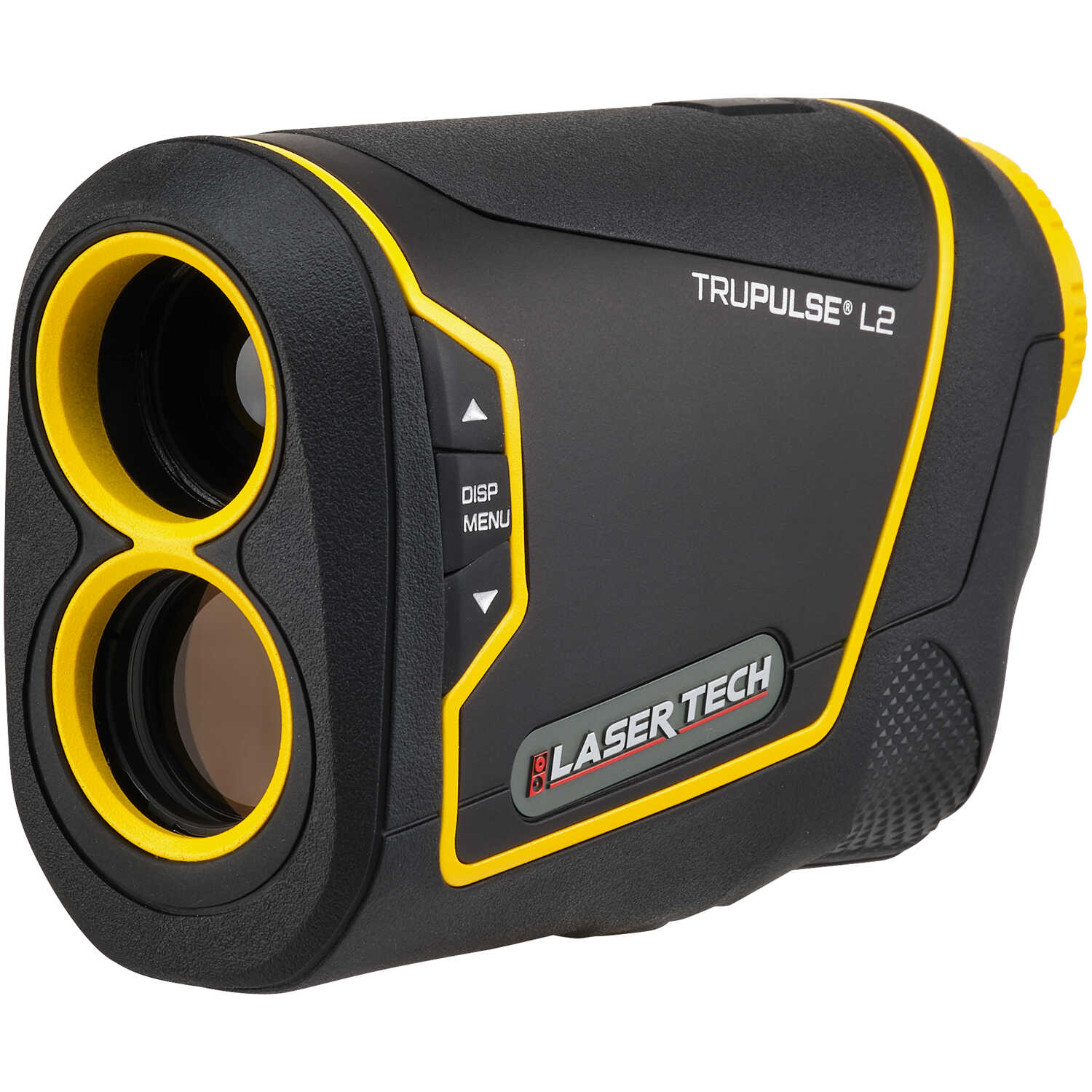

TruPulse L2 Laser Hypsometer

Providing much more than just accurate distance measurements, the L2 laser rangefinder/hypsometer measures slope distance and inclination angle and calculates horizontal distance, vertical distance, height, and 2D vertical missing line values. Advanced targeting modes allow you to select or eliminate targets to obtain the most accurate measurements depending on the field conditions. Choose from standard, closest, farthest, filter, and continuous modes. The TruTargeting feature provides physical, audible, and visual indication of target acquisition. An icon-driven display makes operation straightforward and simple. Results are shown on the in-scope PDLC display in either red or black, and automatic brightness adjustment ensures excellent visibility. Distance is displayed in meters or feet, and inclination is shown in degrees or % slope. The L2 is lightweight and easy to hold thanks to rubberized grips, and the rugged housing is IP67 rated.

Product Notes

  • Combination English/Metric Scales or Units.
  • Restricted Sales: R93 Cannot be sold Internationally

Have A Question?

Quick Specs

Brand Laser Technology
MPN 7005860
UNSPSC 41111603
Distance: Accuracy, ±1.6 feet (±0.5 m) to typical targets; ±3 feet (1 m) to weak targets; Resolution, 0.5 feet, 0.1 m; Maximum Range, 3,900 feet (1,200 m) typical to non-reflective targets, 7,200 feet (2,195 m) to reflective targets. Inclination: Accuracy, ±0.5°; Resolution, 0.5°, 0.5% slope; Range, ±90°; Measures in degrees and % slope. Magnification: 5x. Eye Safety: FDA Class 1 laser product. Operating Temperature: 23°F to 140°F (-5°C to 60°C). Power: One CR2 battery. Battery Life: 10 hours typical use. Dimensions: 3.0˝ x 1.9˝ x 4.3˝. Weight: 8 oz.

Quick Specs

Brand: Laser Technology
MPN: 7005860
UNSPSC: 41111603
