Spectra Precision® HL760 Laser Receiver
Description

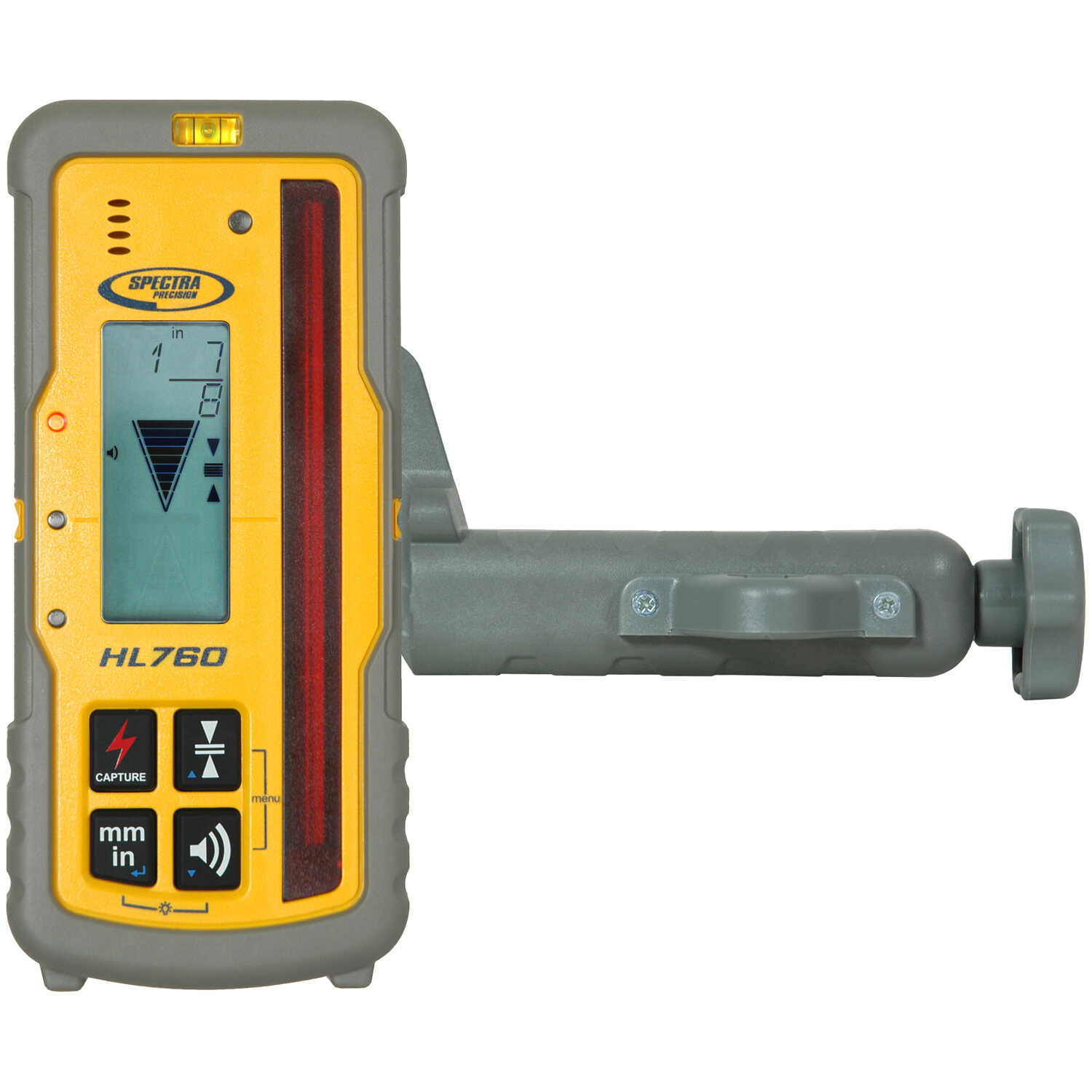

Spectra Precision HL760 Laser Receiver
With radio transceiver, C70 rod clamp and bubble level vial
The HL760 Digital Readout Receiver is a highly versatile laser receiver for basic and advanced leveling and aligning applications. It is designed for general, concrete and site preparation contractors. Features include digital readout of elevation; the large 5 inch (12.7 cm) reception height acquires the beam quickly and makes it easy to stay in the beam; the anti-strobe sensor stops construction strobe lights from setting off the receiver and makes it easier to identify true laser beam signals; dust and weatherproof housing withstands a drop of up to 10 ft (3 m) onto concrete for reduced downtime; and it works with another HL760 for long range wireless remote display and monitoring – even when the second receiver is out of sight (up to 80 m or 260 ft.).
Have A Question?
Quick Specs
| Brand | Spectra Precision |
| MPN | HL760 |
| UPC | |
| UNSPSC | 41114200 |
| Other |
Working Radius (Laser Dependent): 3 ft - 1500 ft (1m - 460m).
Laser Detection Height: 5˝ (127.0 mm).
Numeric Readout Height: 4˝ (102.0 mm).
Accuracy (Dead-band): Ultra Fine 0.5 mm 0.02 in 1/32 in; Super Fine 1.0 mm 0.05 in 1/16 in; Fine 2.0 mm 0.10 in 1/8 in; Medium 5.0 mm 0.20 in 1/4 in; Coarse 10.0 mm 0.50 in 1/2 in.
Reception Angle: ± 45° minimum.
Battery Life: 60+ hours; 16 continuous backlight.
Environmental: Waterproof, Dust-proof to IP67.
Detectable Spectrum: 610 nm to 780 nm.
Beeper Volumes: Loud = 110 dBA; Medium = 95 dBA; Low = 65 dBA.
Power Supply: 2 x 1.5 Volt “AA” batteries.
Dimensions: 6.6˝ x 3.0˝ x 1.4˝.
Operating Temperature: -4°F to +140°F (-20°C to +60°C).
Storage Temperature: -40°F to +158°F (-40°C to +70°C).
Automatic Shut-Off: 30 min.
|
