Schonstedt® Maggie™ Magnetic Locator

The next generation in magnetic locators

Item #: 43140
Earn 1,095 reward points with this purchase.

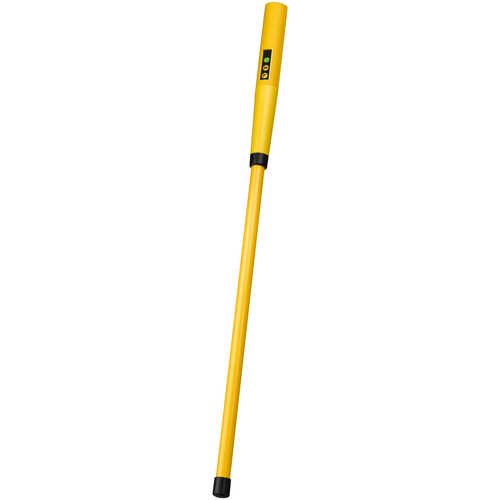

Schonstedt Maggie Magnetic Locator

This advanced magnetic locator combines the best features of two popular Schonstedt products by offering the sensitivity and precision of the GA-52Cx and the convenient, single-handed operation of the ergonomic GA-92XT! The Maggie detects the magnetic field of ferromagnetic objects and features continuous sensitivity adjustment for finite control. Detect the magnetic fields of magnetized markers, manholes, septic tanks, well casings, valve boxes, cast iron pipes, steel drums, and unexploded ordnance. Objects such as well casings can be detected up to 15 feet deep. An 18˝ length of 3/4˝ rebar can be located at depths up to 7 feet. The Maggie also precisely locates metal handles or reinforcing bars on septic tank covers at depths up to 4 feet. Plastic enclosures containing magnets are easily located at depths of 6 feet or more. The audio output signal increases in frequency with gradient field intensity, and a visual display indicates polarity, signal strength, gain level, and battery level. In addition to patented HeliFlux® sensors, the Maggie features high-impact ABS construction. Includes a padded carrying case, 9V alkaline battery, and instruction manual. Seven-year manufacturer’s warranty.

Have A Question?

Quick Specs

Brand Schonstedt
MPN Maggie
UNSPSC 41114200
Made In United States
Operating temperature: -13°F to 140°F. Output: Audio, Signal increases in frequency with gradient field intensity, Idle frequency = 10 Hz; Visual, Expanding bar graphs indicate polarity (positive or negative) and relative signal strength. Power: one 9V alkaline battery (included). Battery life: 24 hours (intermittent usage). Length: Overall, 32.5˝; Water resistant length, 17.5˝. Weight: approx. 2.6 lbs.


Quick Specs

Brand: Schonstedt
MPN: Maggie
UNSPSC: 41114200
Made In: United States
