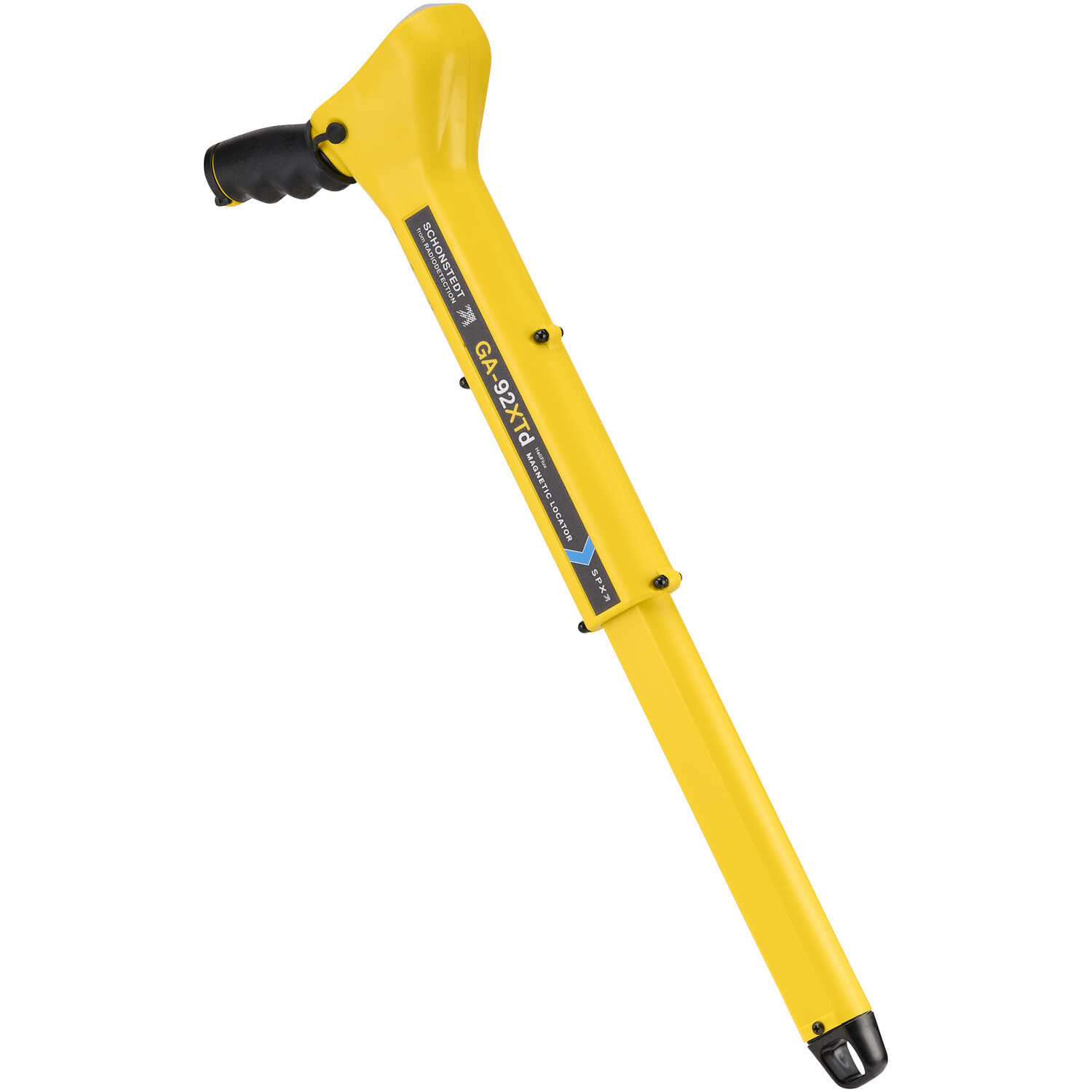

Schonstedt® GA-92XTd Magnetic Locator
/Images/Original/2671_43125_p1.jpg
Schonstedt

Schonstedt® GA-92XTd Magnetic Locator

Extendable for greater sensitivity – retracts for easy carrying

Item #: 43135
$1,022.00
Earn 1,022 reward points with this purchase.

Description

Schonstedt GA-92XTd Magnetic Locator

Accurate, reliable, and incredibly portable, the GA-92XTd magnetic locator quickly and easily detects the magnetic fields of ferromagnetic objects up to 16 feet underground. Detect the magnetic fields of property markers, manholes, septic tanks, well casings, valve boxes, cast iron pipes, steel drums, and unexploded ordnance. Designed for easy single-handed operation using a membrane switch, the unit allows for fingertip control of volume and sensitivity and operates in both retracted and extended modes. A carrying holster provides a convenient way to keep the magnetic locator within reach at the job site. The GA-92XTd provides audio indication of ferrous objects as well as a battery level meter and a relative gain strength indicator. The GA-92XTd also features a display unit which shows signal polarity and a bar graph representing relative signal strength. This simultaneous use of audio and visual responses provides information to help in pinpointing a target and determining its orientation. Carrying case included. Seven year warranty.

Have A Question?

Quick Specs

Brand Schonstedt
MPN GA-92XTD
UNSPSC 41114200
Made In United States
Other
Operating temperature: -13°F to 140°F. Output: Audio, Signal increases in frequency with gradient field intensity. Idle frequency = 10 Hz. Visual, Expanding bar graphs indicate polarity (positive or negative) and relative signal strength. Power: one 9V battery, included (lithium recommended, but not required). Battery life: 24 hours (intermittent usage). Overall length: Unit extended, 26”; Unit collapsed, 15.5”. Water resistant length: 11.5” (when extended). Weight: approx. 2.4 lbs.
