Terraplus KT-10 Dedicated Magnetic Susceptibility Meters

Item #: 33133
Earn 0 reward points with this purchase.

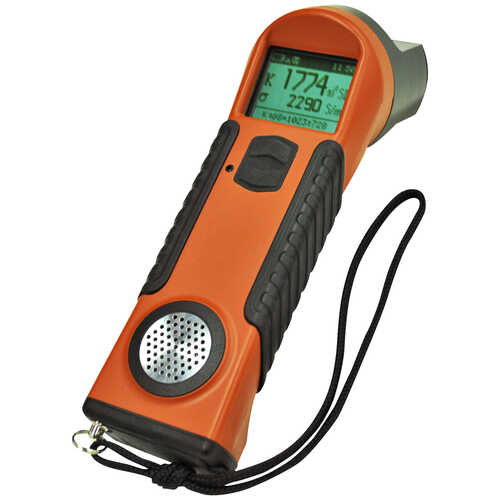

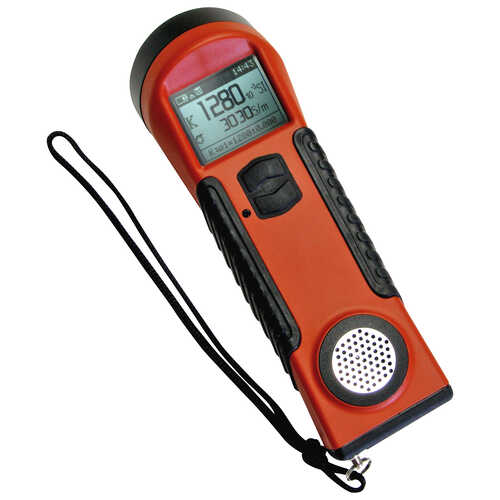

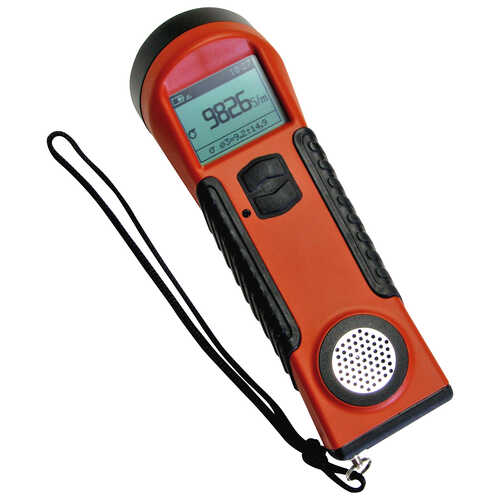

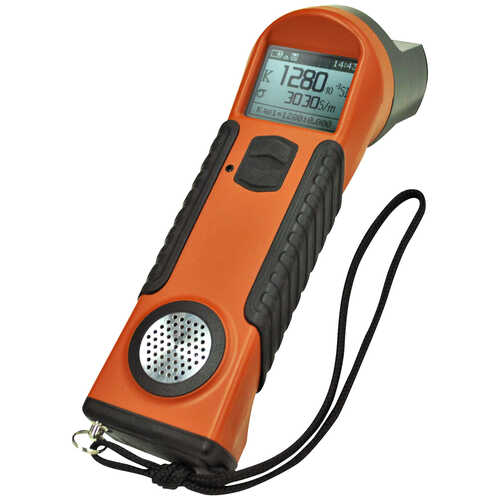

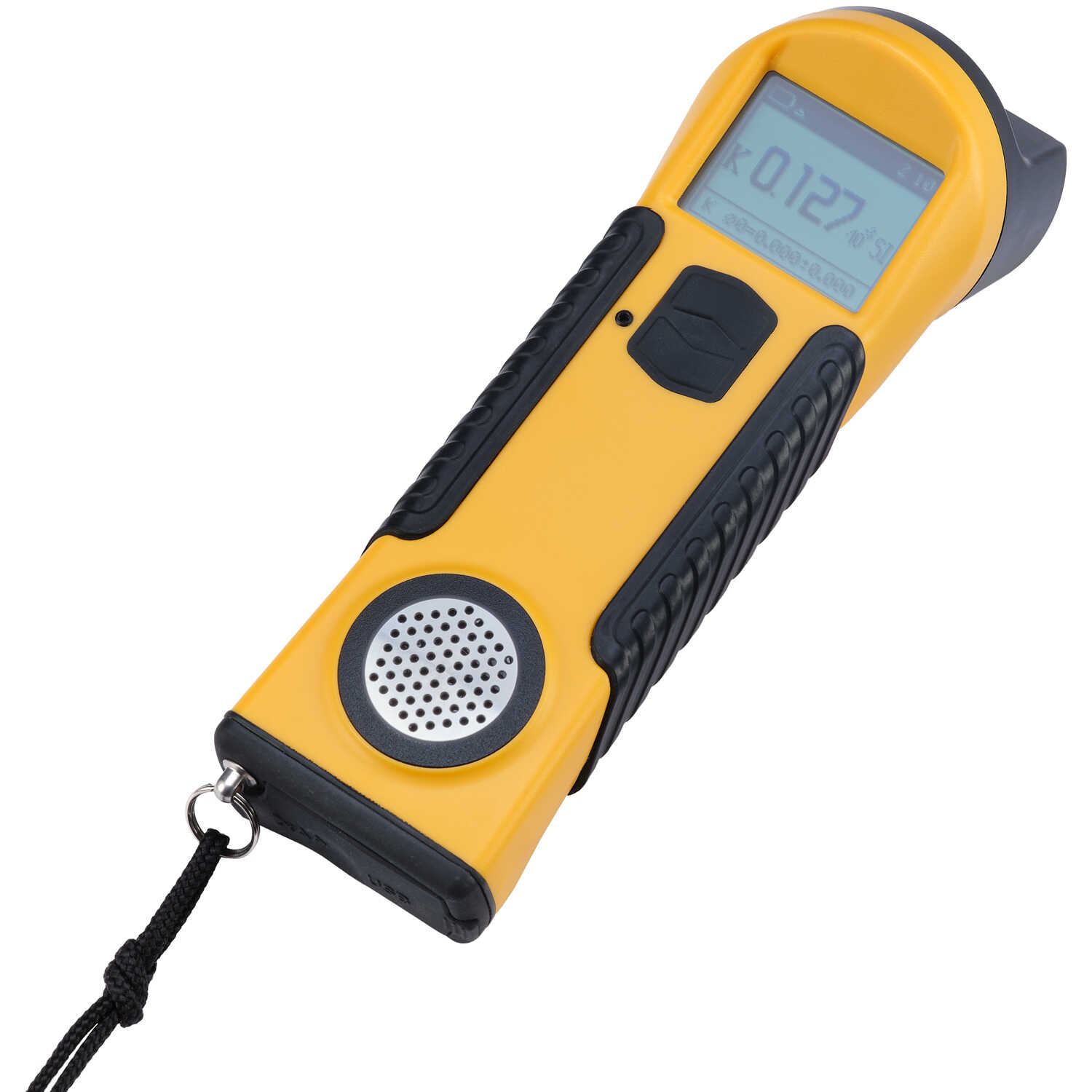

Terraplus KT-10Rv2 Dedicated Magnetic Susceptibility Meter with Rectangular Coil

The KT-10 meters measure the magnetic susceptibility of a geological sample or core. These stand-alone meters with display and data storage are available in circular and rectangular coil designs to measure large or small sized samples, respectively. They also produce repeatable results and features include three modes of operation (discrete measurements, continuous scanning or borehole); split and full core corrections for standard drill rod diameters and non-standard sizes; the ability to input information to correlate measurements to their appropriate depths; a built-in microphone to record voice notes with measurements; and the GeoView data management/visualization software. Their compact and rugged design make them ideal instruments for use in the field, core shack, or lab.

Note: Calibration pad values are approximate and may vary from pad to pad.

Product Notes

  • Restricted Sales: R93 Cannot be sold Internationally

Have A Question?

Quick Specs

Brand Terraplus
MPN KT-10R v2S
UNSPSC 41113900
Operating Frequency: 10 kHz. Measurement Frequency: 20 readings per second in Scan Mode, storing 4 averaged readings per second. Display: High contrast LCD display with 104 x 88 pixels. Memory: 8 GB: 4,000 total records stored (4,000 scanner measurements, with up to 480 data points per record; 4,000 discrete measurements, with 120 seconds of voice notes per reading). Note: discrete and scan records can be combined. Control: One button with up / down functionality. Data Input/Output: USB and Bluetooth (GPS pairing). Power Supply: 2 AA batteries (alkaline or rechargeable). Battery Life: Up to 2,000 measurements without voice recorder while using rechargeable batteries (3,000 measurements with alkaline batteries). Operating Temperature Range: -20°C to 60°C. Meter Dimensions: 200mm x 57 mm x 32 mm. Coil Dimensions: Circular Coil – 65 mm (diameter); Rectangular Coil – 65 mm (length) x 32 mm (width). Weight: 0.33 kg with 2 AA alkaline batteries installed.
