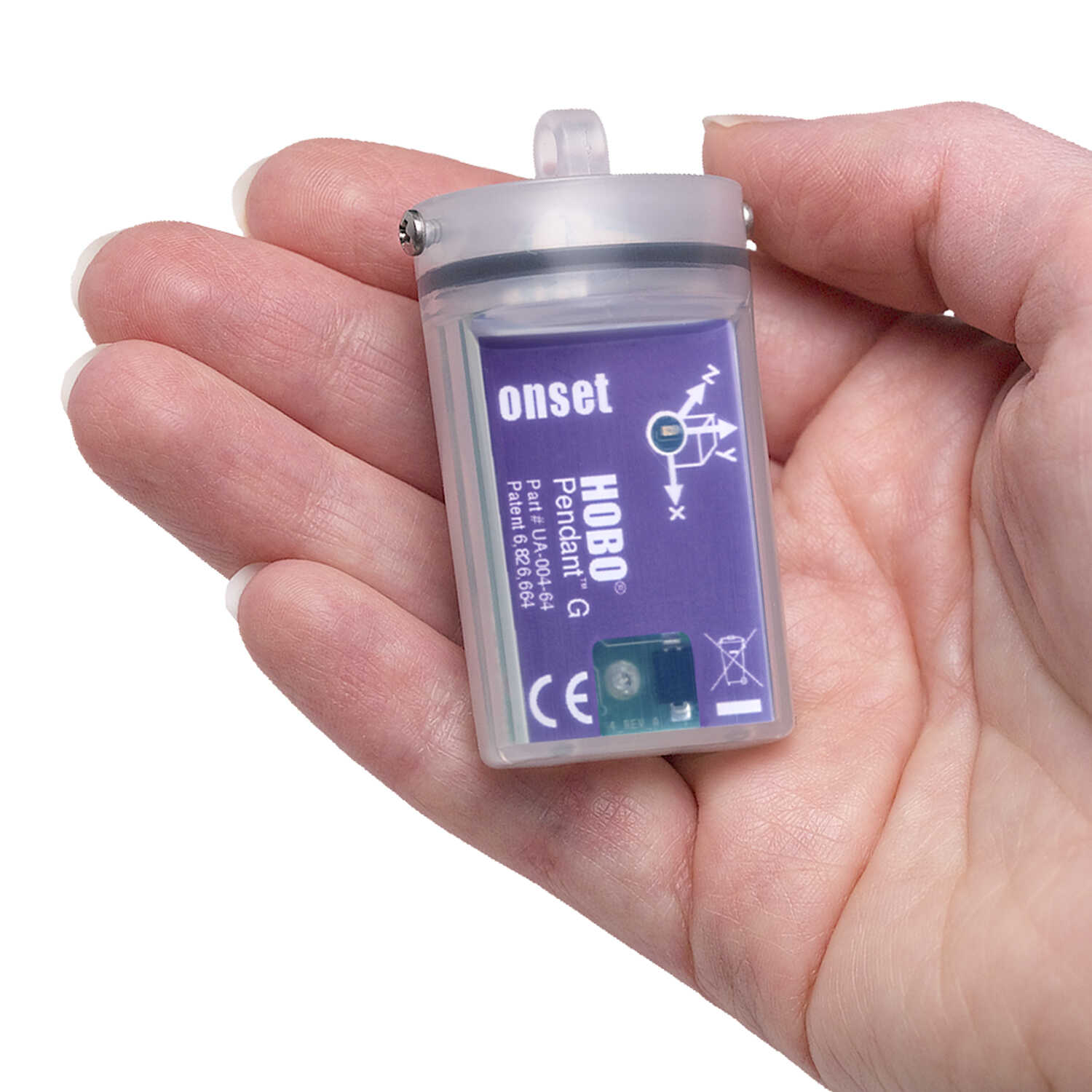

HOBO® Pendant® G Data Logger

Item #: 89553
$115.00
Earn 115 reward points with this purchase.

Description

HOBO Pendant G Data Logger

HOBO® Pendant loggers are waterproof to 30 meters and value-priced for short-term applications or year-long remote deployment. User-selectable sampling intervals can be set from 1 second to 18 hours, and you can program the start time/date or trigger start on-site with a magnet. Fast optic USB interface allows data readout in less than 30 seconds. Designed for use in a wide range of experiments, demonstrations, and field studies, the Pendant G measures acceleration and angular displacement in 1, 2, or 3 axes. The logger measures dynamic acceleration resulting from motion, shock, or vibration. In addition, the logger detects static acceleration of gravity in order to measure tilt, activity, and inclination. The 64K memory stores approximately 21,800 combined x-, y-, and z-axis readings or events.

HOBOware Software is available as a FREE download. Click here for more information.

Have A Question?

Quick Specs

Brand HOBO
MPN UA-004-64
UPC
UNSPSC 41111900
Made In United States
Other
Measurement Range: ± 3 g; 29.4 m/s² (96.5 ft/s²). Accuracy: ± 0.075 g; 0.735 m/s² (2.41 ft/s²) at 25°C (77°F); ± 0.105 g; 1.03 m/s² (3.38 ft/s²) from -20°C to 70°C (-4°F to 158°F). Resolution: 0.025 g; 0.245 m/s² (0.8 ft/s²). Logging Interval: Normal mode: 1 second to 18 hours, 12 minutes, 15 seconds; Fast mode: 0.01 seconds (100 Hz) to 0.99 seconds (1.01 Hz). Time Accuracy: ± 1 minute per month at 25°C (77°F). Operating Range: In water/ice: -20°C to 50°C (-4°F to 122°F); In air: -20°C to 70°C (-4°F to 158°F). Water Depth Rating: 30 m from -20°C to 20°C (100 ft. from -4°F to 68°F). Battery Life: Normal Mode: 1 year typical use; Fast Mode: 7 days logging at 0.01 seconds (100 Hz). Memory: 64K bytes (approximately 21.8K combined x-, y-, and z-axis readings or events). Materials: Polypropylene case; stainless steel screws; Buna-N o-ring. Weight: 0.6 oz. Dimensions: 2.3˝ x 1.3˝ x 0.9˝.

Quick Specs

Brand: HOBO
MPN: UA-004-64
UPC:
UNSPSC: 41111900
Made In: United States
