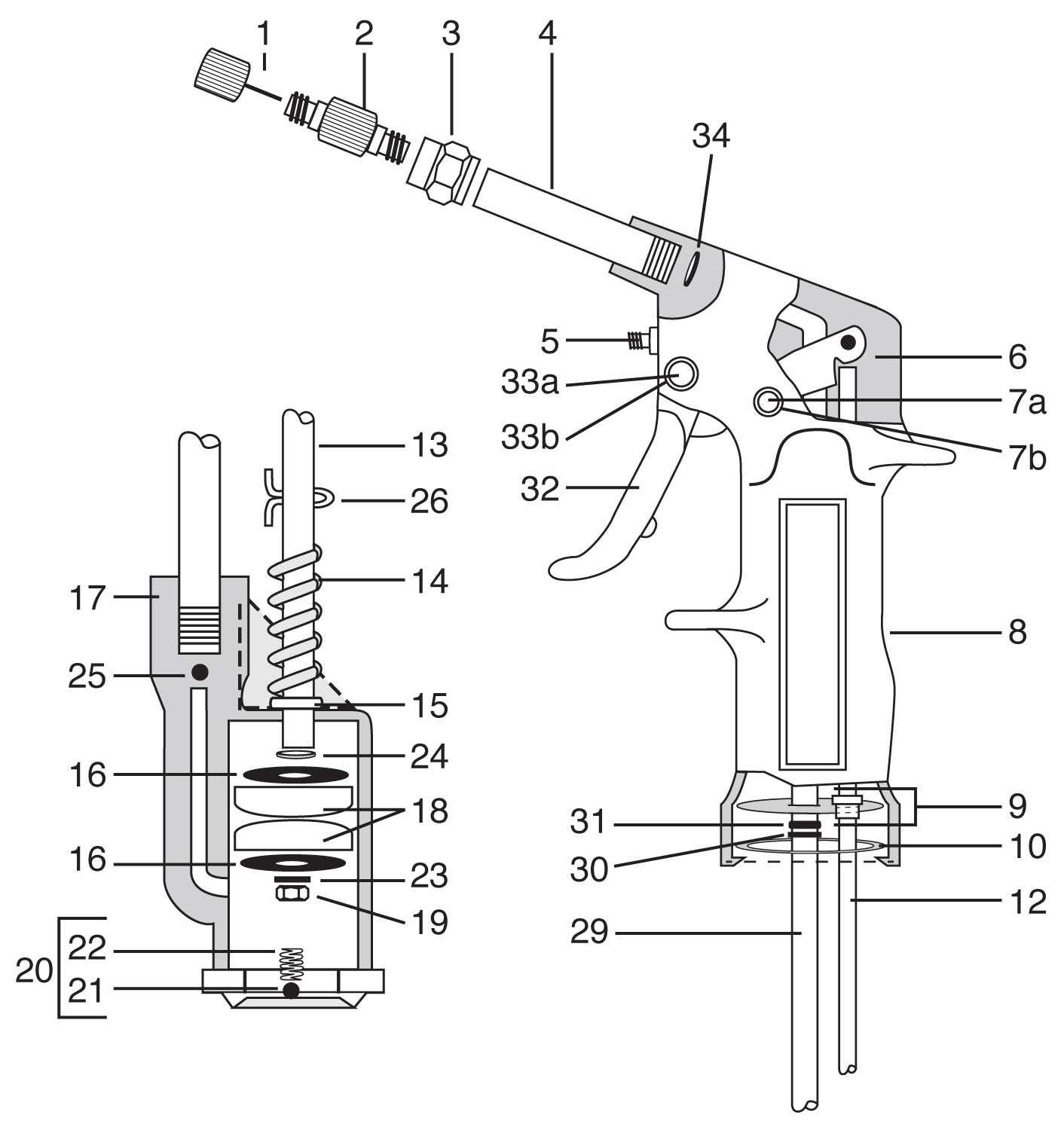

Replacement Parts For Nel-Spot Tree Marking Guns

Item Image

Cross Reference

1 - Nel-Spot Nozzle Cap
2 - Nel-Spot 1 piece Reversible Nozzle, .021 nickel finish
2 - Nel-Spot 1 piece Brass Reversible Nozzle
3 - Nel-Spot Retaining Sleeve
4 - Nel-Spot Extension Tube, 3”
5 - Nel-Spot Nozzle Cap Holder
6 - Nel-Spot Trigger Link
7a - Nel-Spot Trigger Link Pin
7b - Nel-Spot Retainer Ring
9 - Nel-Spot Spacer Disc Assembly
10 - Container Gasket
12 - Nel-Spot Upper Piston Rod
13 - Nel-Spot Lower Piston Rod
14 - Nel-Spot Spring
15 - Nel-Spot Piston Rod Washer
16 - Nel-Spot Washer
17 - Nel-Spot Plastic Cylinder
18 - Nel-Spot Cup Leather
19 - Nel-Spot Hex Nut
20 - Nel-Spot Intake Valve Assembly
21 - Nel-Spot Intake Valve Steel Ball
22 - Nel-Spot Intake Valve Spring
23 - Nel-Spot Lock Washer
24 - Nel-Spot Washer
25 - Nel-Spot Steel Ball
26 - Nel-Spot Cotter Pin
29 - Nel-Spot Fluid Tube
30 - Nel-Spot Retainer
31 - Nel-Spot O-Ring
32 - Nel-Spot Metal Trigger, 3-Finger
32 - Nel-Spot Plastic Trigger
32 - Nel-Spot Metal Trigger, 2-Finger
33a - Nel-Spot Trigger Pin
33b - Nel-Spot Snap Ring

Find parts for old model D-103 at bottom of list (parts not shown in schematic)
