Spectra Precision® GL1425C Dual Grade Laser
With HL760 Receiver and RC1402 Remote Control
Description

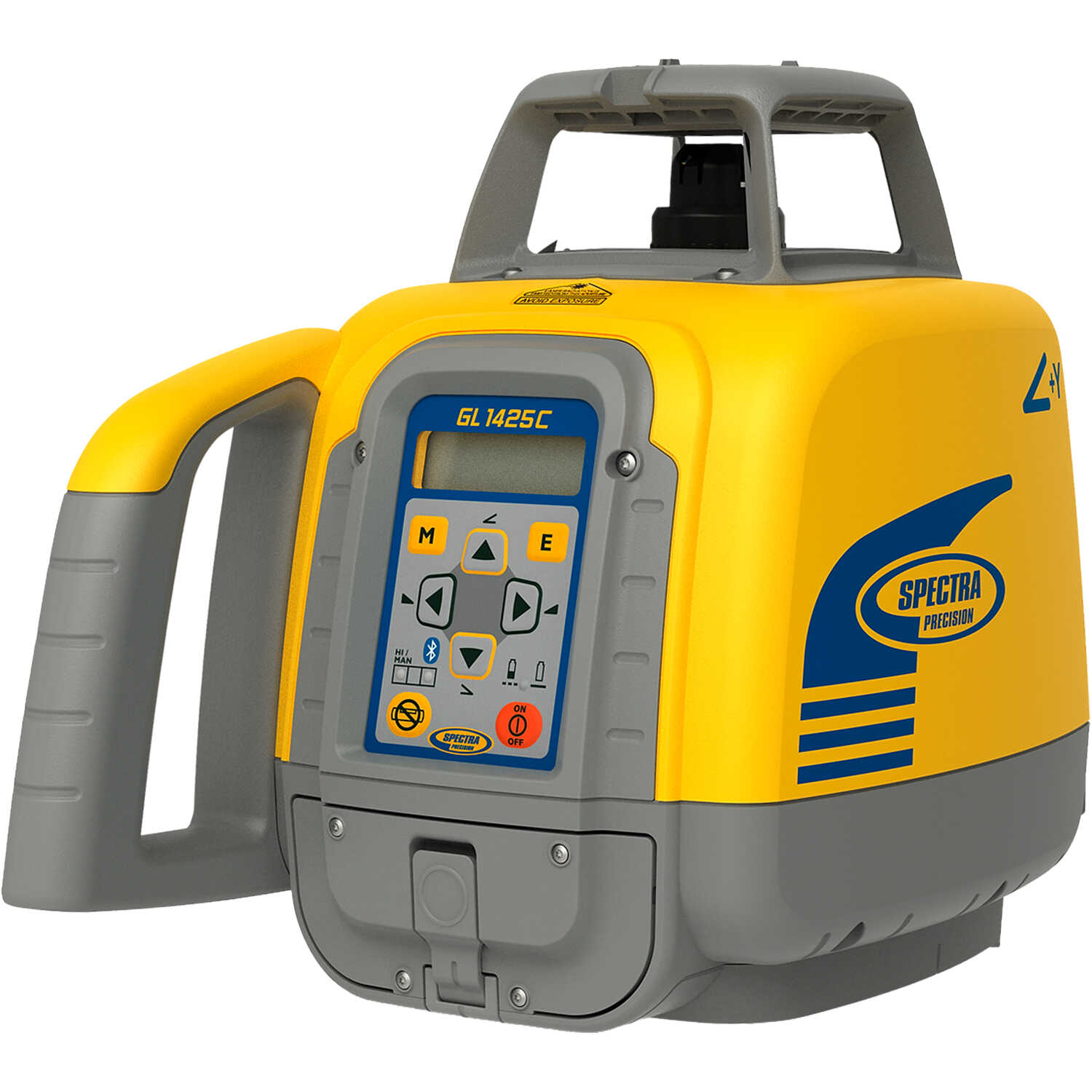

Spectra Precision GL1425C Dual Grade Laser
The automatic self-leveling GL1425C dual grade laser is rugged, cost-effective and does three jobs - level, grade, and vertical alignment. Even in harsh job site conditions, it delivers consistently reliable and accurate performance, enabling you to work faster (up to 900 rpm) and smarter. Highly durable design enables the GL1425C to survive a drop up to 1 m (3 feet) onto concrete. Equipped with built-in Bluetooth, it has a dedicated Laser Remote App. The Remote Control or remote control app allows operation of all laser functions from anywhere on the job-site. Other features include a new menu-driven interface, Automatic Grade Matching, Height of Instrument Alert, single-person operation, an illuminated backlit LCD display, a long 130 hour battery life, and is IP66 dust-proof and water-proof.
Have A Question?
Quick Specs
| Brand | Spectra Precision |
| MPN | GL1425C |
| UPC | |
| UNSPSC | 41114200 |
| Other |
Accuracy: 1/16 inch @ 100 ft. (1.5mm @ 30m)
Working range: 2,600 ft. (800 m) diameter
Automatic Grade Matching: Radio communication between the HL760 DRO receiver and the laser provides automatic Grade Matching and PlaneLok
Grade Range - No tilt adjustment: typ. ± 9 %
Grade Range with tilt adjustment: ± 15 %
Rotation Speed: 300, 600, 900 rpm
Laser Type: 630 – 643 nm
Laser Class: Class 2
Self Leveling Range: Typ. ± 5° (± 8.7%)
Radio Range (HL760): Up to 100m (330 ft)
Power Source: 10000 mAh NiMH battery back or 4 x 1.5V D alkaline batteries
Battery Life Time: Typ. 45 hours
Battery Charging Time: < 10 hours
Tripod Attachments: 5/8 x 11 horizontally and vertically
Environment: IP 66, Dust and Water Proof
|
